ID # 38900958

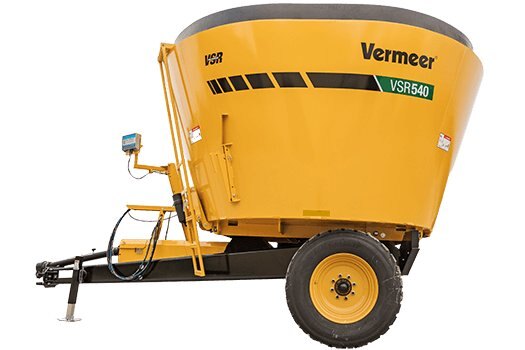

Vermeer VSR540 Single-screw Vertical Mixer

Call for Price
Overview

Built for cow-calf producers who want to maximize the value of high-roughage feed rations, the Vermeer VSR540 single-screw vertical mixer combines durability, reliability and performance for full-time or seasonal use. Equipped with essential features and designed for low-maintenance ownership, these mixers deliver ample processing power with virtually no spillage.

Specifications
Model
VSR540 Single-screw Vertical Mixer
Category Name
Agriculture
Year
2025
Sale Type
New
Manufacturer
Vermeer
dimensions
Total Length
201 in (510.5 cm)
Tires (retread)
Standard 445/50R-22.5
Maximum Net Load
11000 lbs (4989.5 kg)
Loading Height - Standard
120 in (304.8 cm)
Machine Weight - Standard
8920 lbs (4046 kg)
Working Width - 50-in Folding Conveyor Extension
158 in (401.3 cm)
Transport Width - 50-in Folding Conveyor Extension
132 in (335.3 cm)
drivetrain
Driveline
Standard: 1000 rpm, CV; Optional: 540 rpm, CV
Screw Rpm
1000-rpm configuration: 48 (1 speed) or 48/32 (2 speed); 540-rpm configuration: 40 (1 speed) or 40/27 (2 speed)
Torque Protection
Shear bolt
operational
Capacity
540 cu ft (15.3 cu m)
Scale Display
Digi-Star EZ2500
Discharge Style
Side conveyor
Floor Thickness
5/8 in (15.9 mm)
Number Of Screws
1
Tub Wall Material
Regular structural steel
Tub Wall Thickness
1/4 in (6.4 mm)
Discharge Direction
Right
Minimum PTO Horsepower
130 hp (97 kW)
Screw Flighting Material
AR200
Screw Flighting Thickness
1/2 in (12.7 mm)
Number Of Knives Per Screw
7
Recommended PTO Horsepower
150 hp (111.9 kw)
Folding Conveyor Extension Length
50 in (130 cm)
literature
Name Link
OEM Brochure Download
