ID # 38900738

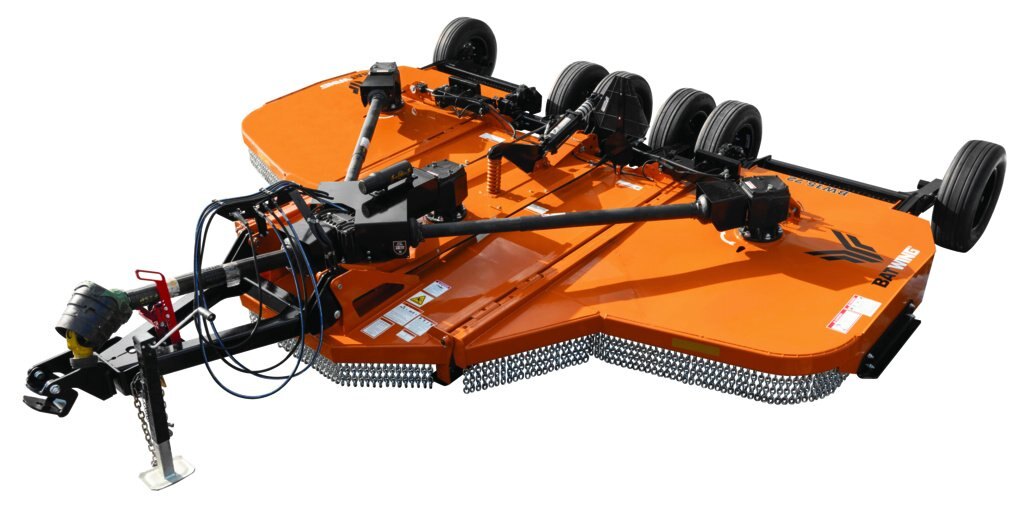

Massey Ferguson BW15.72 Batwing® Rotary Cutters

Call for Price
Overview

BTHE ONE AND ONLY SINCE 1963

Rotary cutter owners and operators rated Woods® Batwing® cutter the #1 flex-wing cutter for cut quality in a blind study of the major brands in the category. The one and only since 1963, Woods® Batwing® cutter delivers unmatched cut quality, includes exclusive features for easy maintenance and tractor connection and is backed a 10-year gearbox warranty which includes parts, labor and seals.

Specifications
Model
BW15.72
Category Name
Implements
Year
2025
Sale Type
New
Manufacturer
Massey Ferguson
Options
Double row chain shielding, Dual wheels, Towing Eye, Walking Tandems, Shredding Kit
Hitch Type
Swivel clevis hitch
Wheel Type
21 in. laminated, 25 in. severe-duty Ag, 25 in. severe-duty Ag foam-filled, 27 in. severe-duty Ag foam-filled, 29 in. used aircraft
Product Tier
Extra Heavy-Duty
Tractor PTO HP
65-300
Blade Size (in)
.5 x 4
Side Skirt (in)
.25 thick x 13 deep
Driveline Rating
CAT 6 CV main, CAT 5 wing
Stump Jumper Type
Round
Tractor PTO (rpm)
540 or 1,000
Blade Overlap (in)
6
Cutting Width (ft)
15
Structure Warranty
2 years
Deck Thickness (in)
0.18
Gearbox Rating (hp)
275 splitter / 225 center and wing
Transport Width (in)
96
Blade Tip Speed (fpm)
15,526 (wing), 16,286 (center) at 540 rpm 15,708 (wing), 16,132 (center) at 1,000 rpm
Cutting Area Shielding
Single or Double Chain
Gearbox Warranty (yrs)
10
Output Shaft Size (in)
3 dia
Weight/Tongue Weight (lbs)
5,635/2,410
Adjustable Cutting Height (in)
2 to 15
Cutting Capacity Diameter (in)
4.5
Hydraulics Wing Flex (degrees)
90 up, 22 down

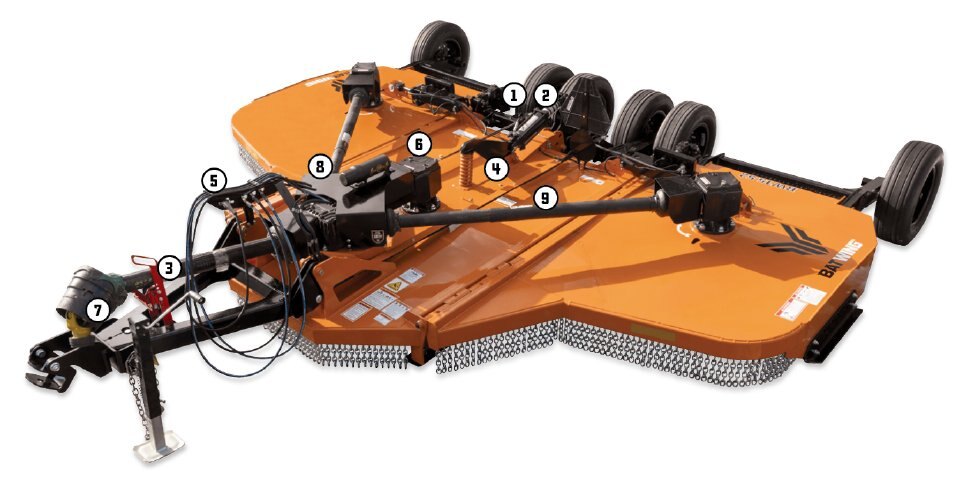

features
  1. Woods® Level Lock™ Technology ensures a more level cut height across rugged terrain. (patent pending)
  2. Optional Cut Height Indicator allows the operator to mark a desired cut height prior to mowing and readjust from the cab as needed for a more even cut.
  3. The Woods Exclusive Smartlift™ System holds holds your 80lb PTO driveline allowing you to easily connect and disconnect from the tractor.
  4. Large Blade Access Window for easy blade maintenance from the top of the deck.
  5. Hose Holder holds hoses closer to the hydraulic remotes clear of the PTO shaft and tractor tires.
  6. Thumbscrew Dipstick quickly and easily check gearbox oil.
  7. PTO Lock Collar holds PTO collar back for easier tractor connection.
  8. Magnetic Driveline Shields lift to service gearbox.
  9. Aligned Grease Points easily find and service grease points.
literature
Name Link
Brochure Download
